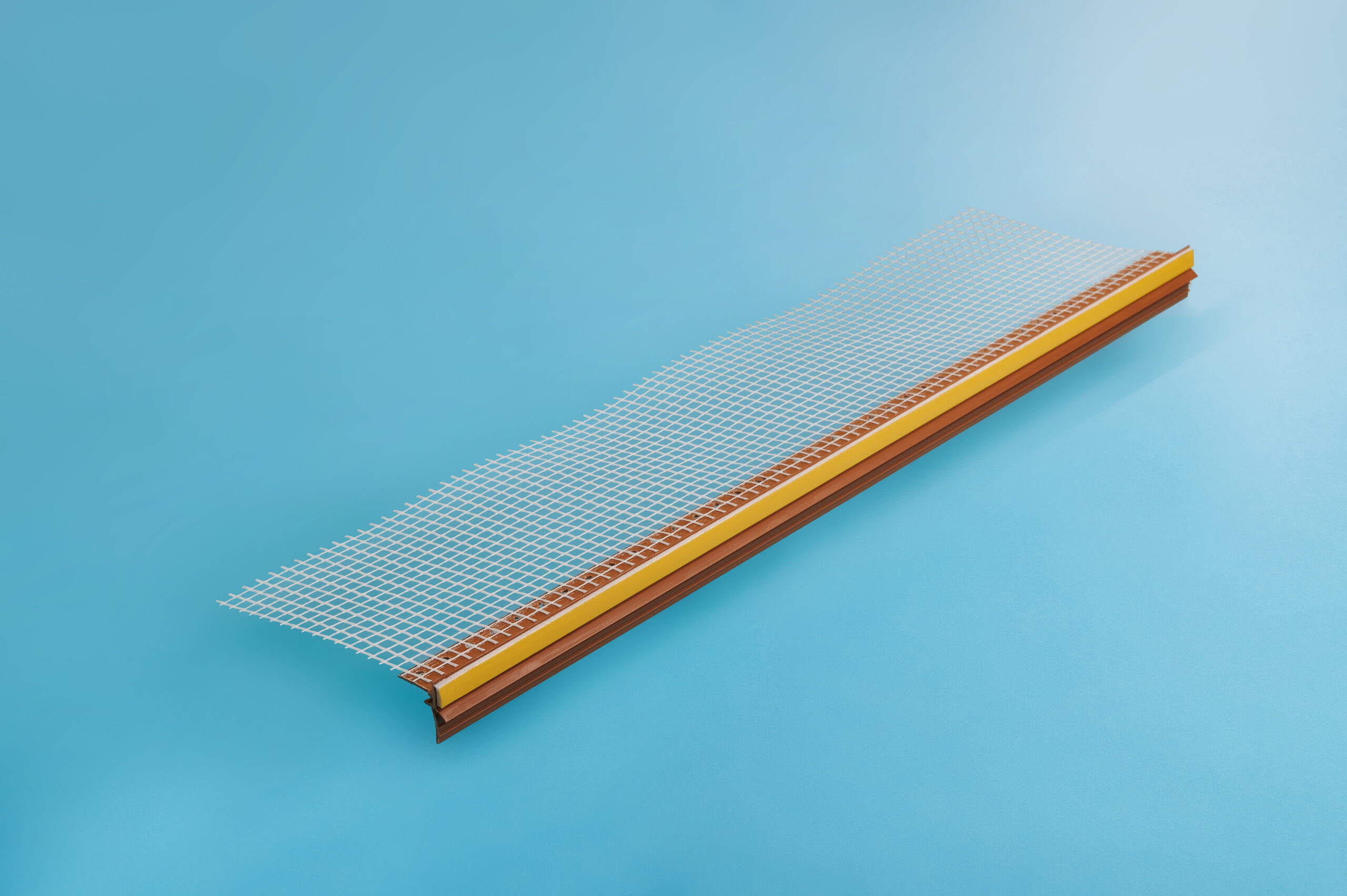

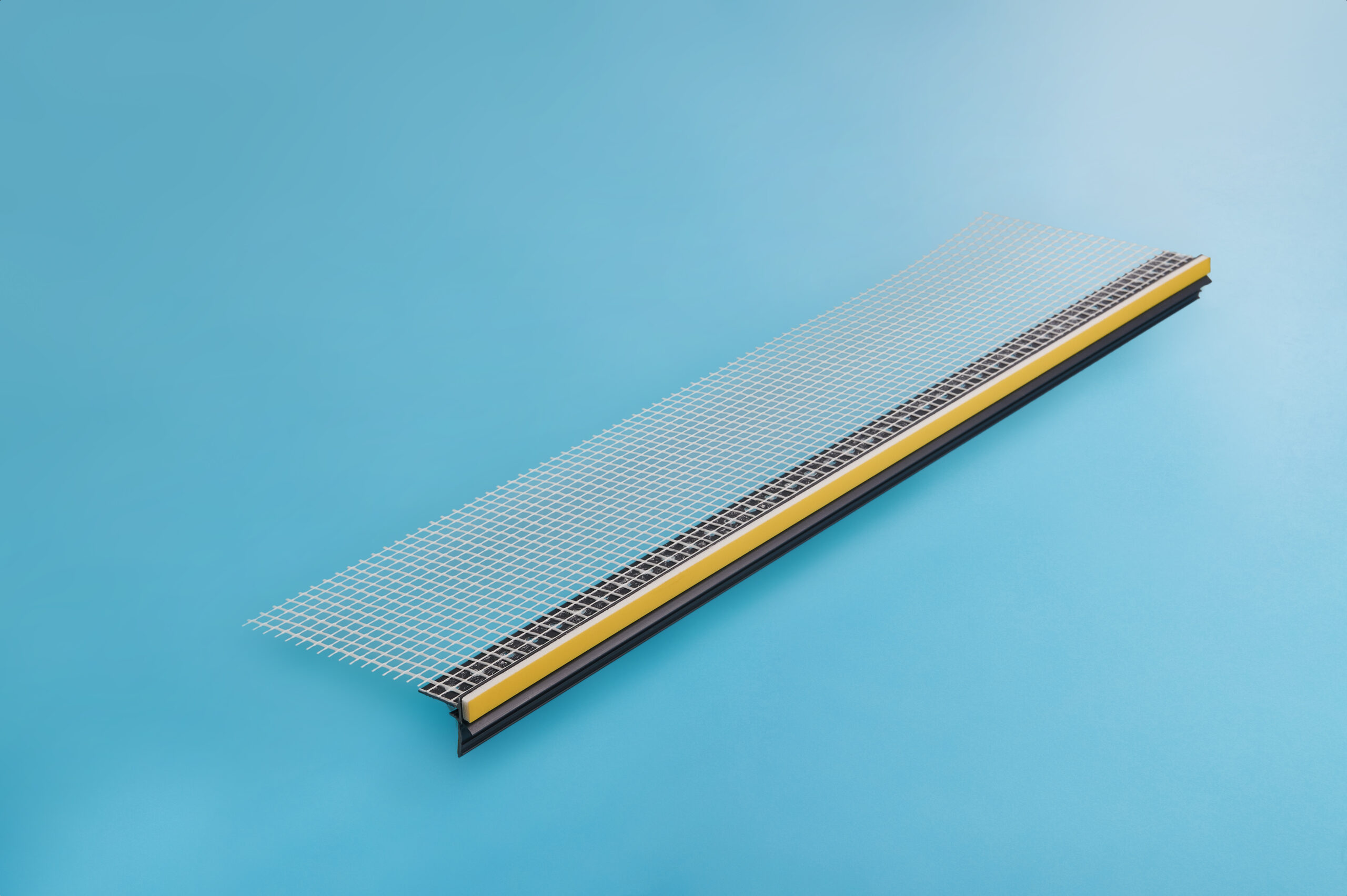

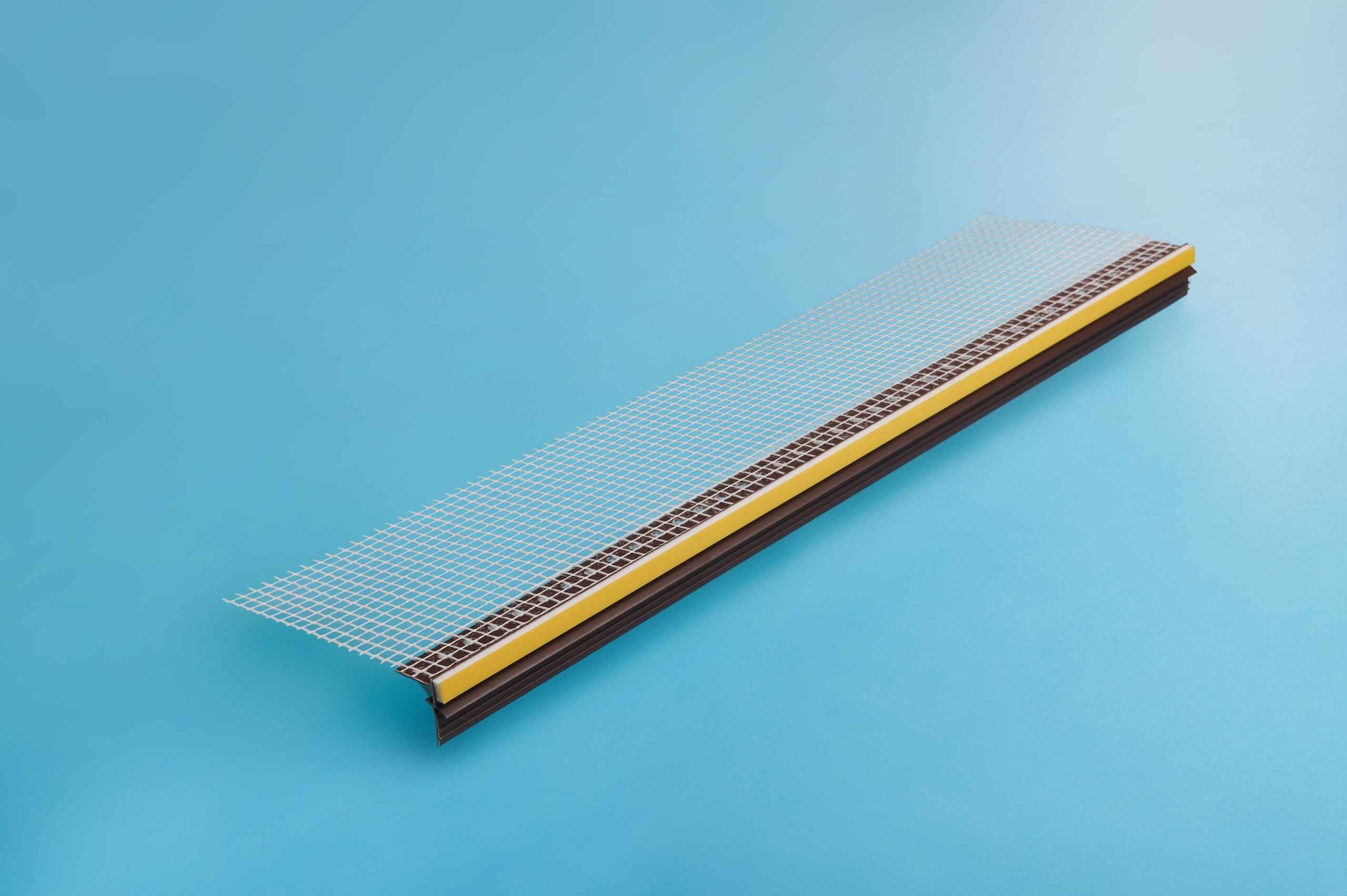

WINDOW REVEAL PROFILE WITH A MESH
Interior works
Technical characteristics
Type of profile: for a window
Kind of profile: with reinforcing mesh
Material: PVC
Length, m: 2.5
Width, mm: 3/6/9
Width of the mesh, mm: 100

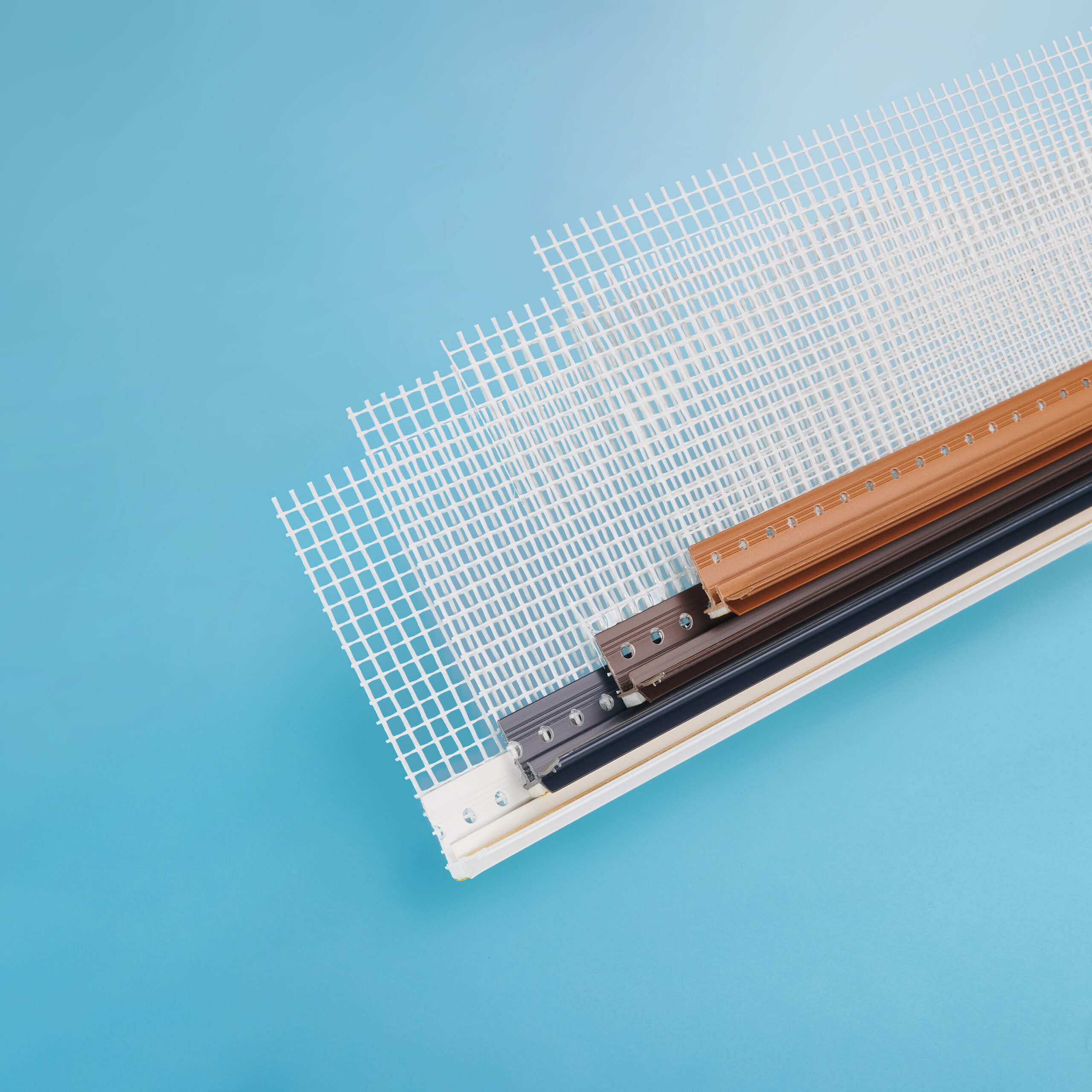

Colour: white, graphite, brown, golden oak
Number of pieces in the package: 20/25
for forming window slopes, executing the expansion joint between the window frame and the plaster.
- thickening and sealing of assembly joints;
- corners strengthening;
- prevention of cracks between plaster and window frame, intensified reinforcement due to the mesh;
- protection against moisture penetration under the thermal insulation material of the window block;
- simple and neat decoration of the space around the window.

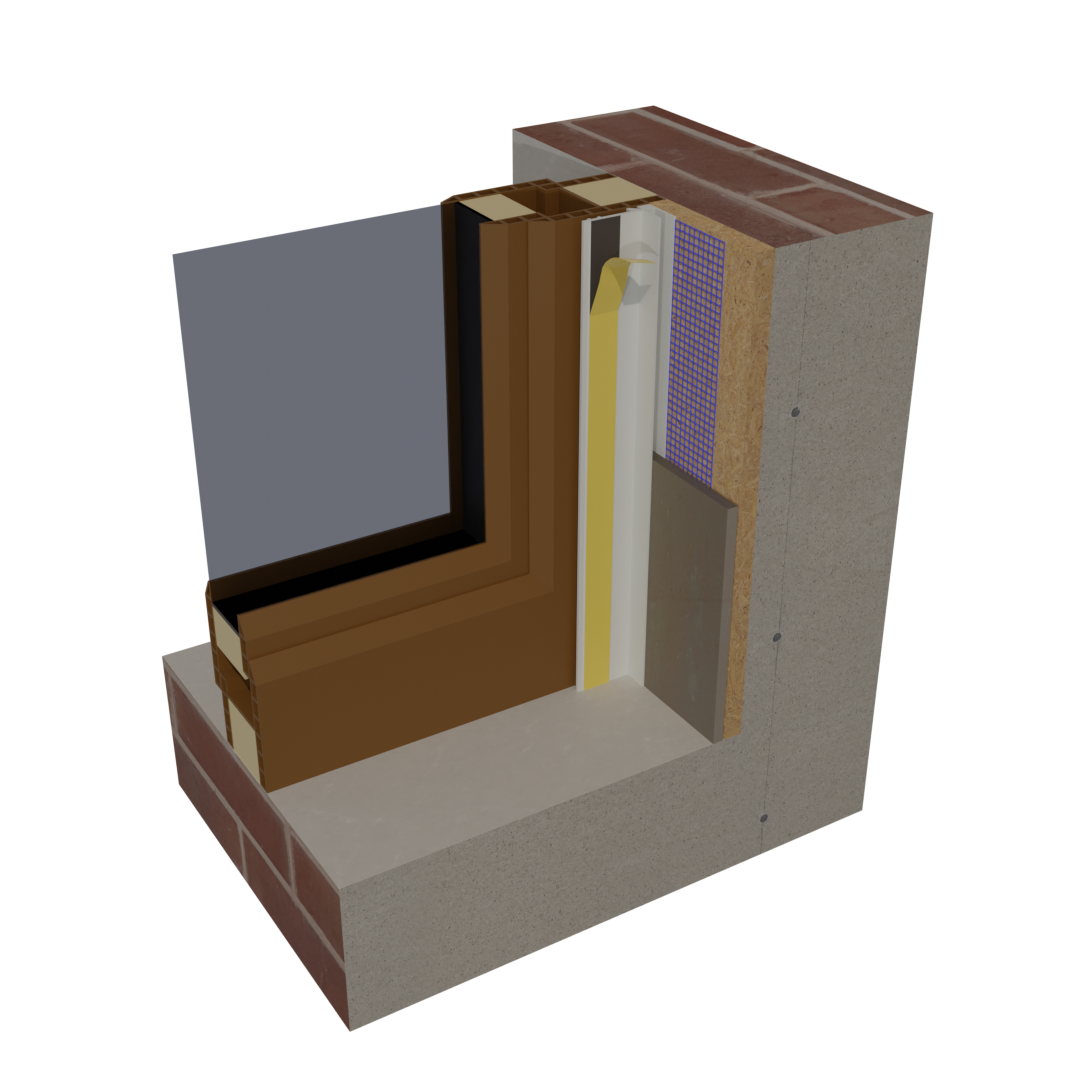

The window profile is installed in window slopes inside and outside buildings. Works must begin with cleaning, drying and degreasing the window frame surfaces. The next step is to remove the yellow protective foil from the foam of the window profile and stick it to the frame. After that, one should leave the structure to dry for at least 2 hours and proceed to the next stage, which is sticking a protective foil that will protect the window and the glass unit from contamination with the plaster. To do so, one removes the protective foil from the profile under which there is an adhesive polyethylene strip, whereto the profile adheres. The plaster should be applied so that it can penetrate into the profile groove. The rest of the plaster should be carefully cut with a putty knife on the profile edge. After the plaster has dried, the removable part should be removed from the profile, and the protective foil should be removed from the window.
Window Reveal Profile with a Mesh: The Perfect Choice for External Insulation
The Window Reveal Profile with a Mesh is becoming increasingly popular among construction materials thanks to its versatility and effectiveness in protecting window reveals and adjacent wall sections. This profile not only enhances the building’s aesthetic but also offers outstanding functionality by shielding window openings from the elements and improving the thermal insulation of the structure.
What is a Window Reveal Profile with a Mesh?
This is a specialized construction component designed for framing window reveals. Equipped with a mesh, the profile reinforces the plaster layer applied around the window opening, increasing the durability and overall strength of the facade finish.
Key Benefits of the Window Reveal Profile with a Mesh
- Moisture Protection
One of the main advantages of this profile is its ability to prevent moisture from penetrating window joints. This is crucial in regions with high humidity or frequent precipitation, where water infiltration can compromise the wall structure. - Enhanced Durability
The integrated mesh reinforces the plaster layer, distributing stress more evenly and minimizing the risk of cracks and other defects over time. - Aesthetic Appeal
Available in various colors and textures, the profile integrates seamlessly into both interior and exterior designs. It’s an ideal choice for projects that value both function and visual appeal.
Applications of the Window Reveal Profile with a Mesh
This profile is suitable for both new builds and renovation projects. It’s widely used in residential, commercial, and industrial construction, offering superior protection and visual refinement for window reveals.
Other Professional Solutions from Alvi Group
- PLASTIC BASE PROFILE (Plinth Profile)
Used to protect and decorate the lower part of external walls, this profile shields the building from splashes, physical damage, and wear over time. - SCREED GUIDE (Guiding Bead)
A must-have for wall alignment, the guiding bead ensures perfectly level surfaces before decorative finishes are applied — key for delivering professional results.
Where to Buy ALVI GROUP’s Products
Alvi Group products are available through our official website and at select building material retailers. We guarantee exceptional quality and offer expert support in choosing the right profiles for your specific construction needs.
The Window Reveal Profile with a Mesh by ALVI GROUP
is the choice of professionals seeking both reliability and elegance in their construction and renovation projects. With its proven durability, high-quality build, and visual flexibility, it meets the highest standards of the building industry.
